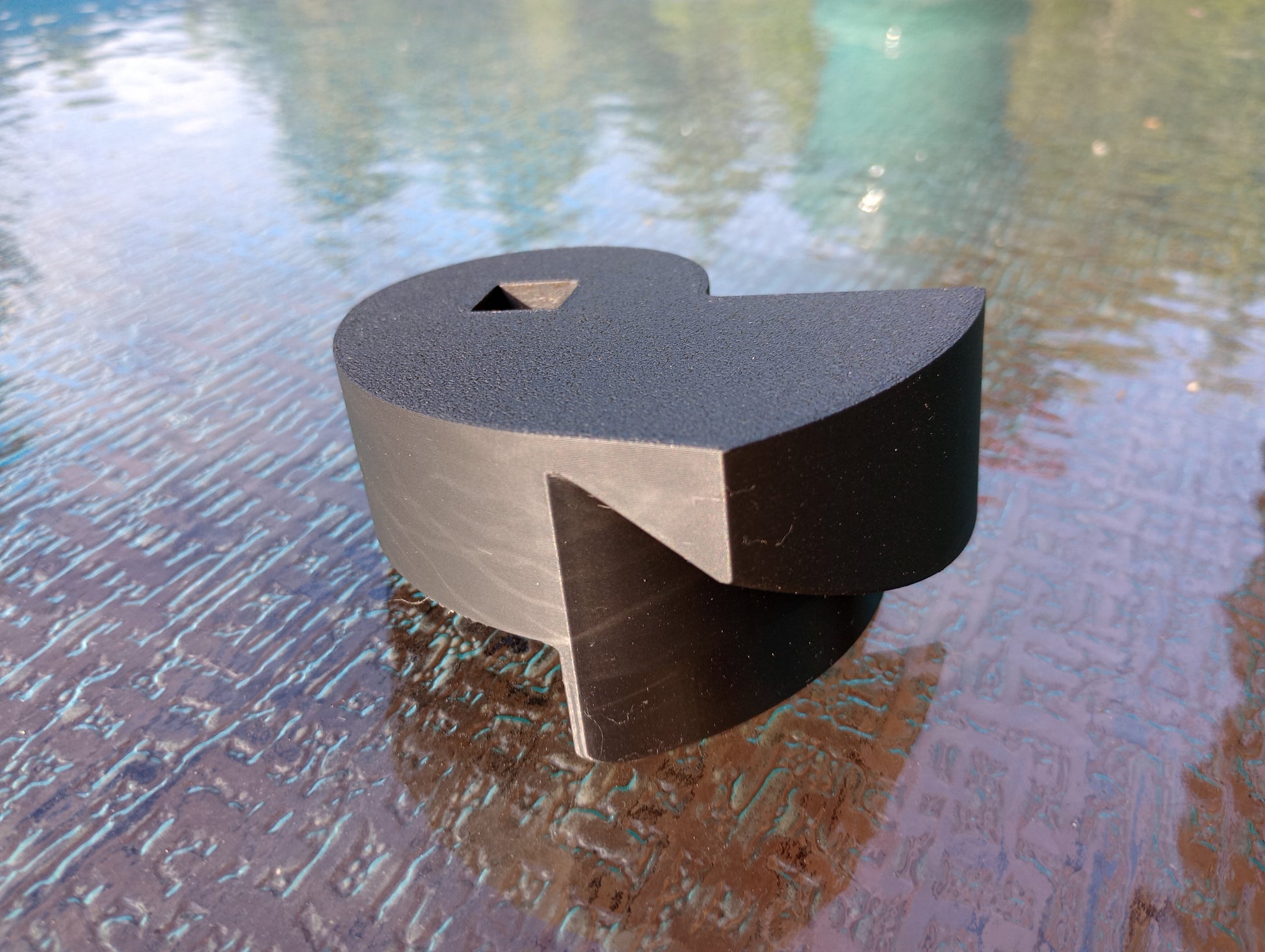

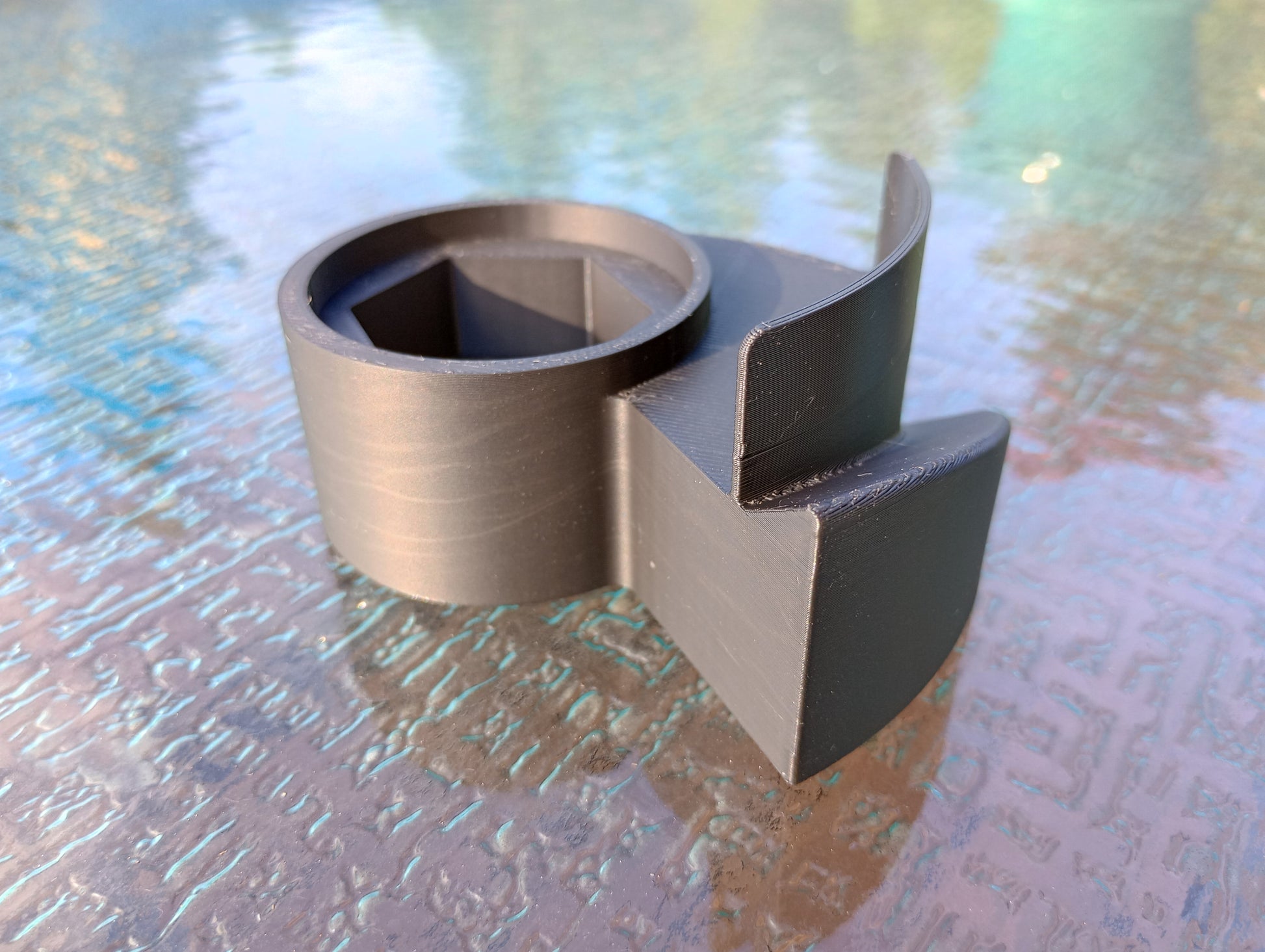

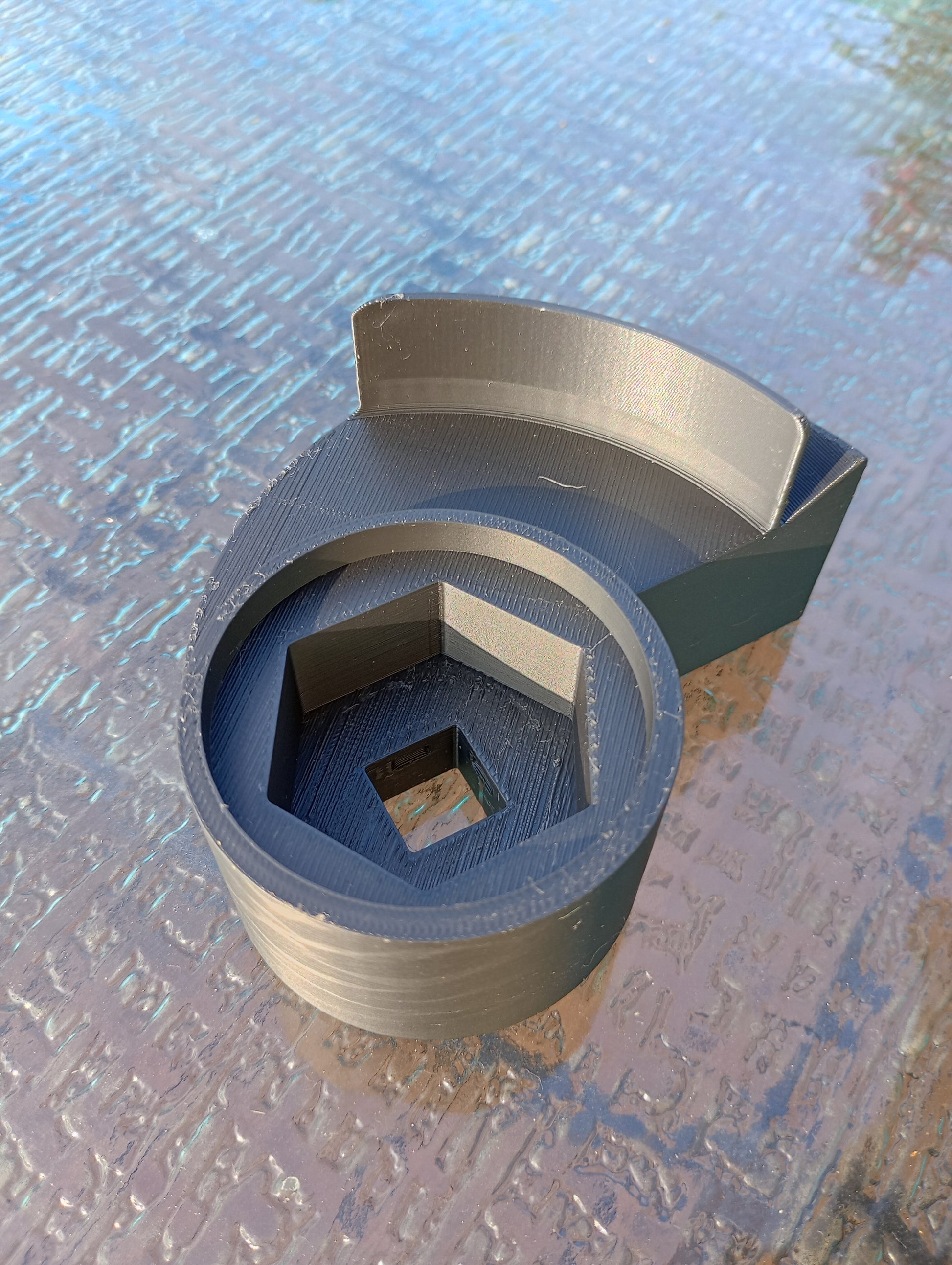

BMW R1200 Alternator Belt Install Tool

Workaround Tools are here to help you get the job done without breaking the bank!

This tool will let you install a new alternator belt with ease.

Application: BMW Hexhead Motorcycles
Make/Model: BMW: R1200, R900RT, HP2, RnineT, R9T
Model Years: 2003- 2013

Performs the function of BMW part number 83 30 0 401 702 at a fraction of the cost.  ($177.67 is the cost of factory tool as of 7/1/2024)

Workshop manual also refers to this tool as "12 3 591 Installation tool for Elasto belt"

A new belt is recommended every 36,000 mi (60,000 km).  These belts WILL eventually break and leave you stranded, so stay ahead of that!  Ask me how I know.

Custom engineered, tested and made in the USA

This tool is made using additive manufacturing technology from polymer.

It will get the job done when used as intended.

Tips for success:

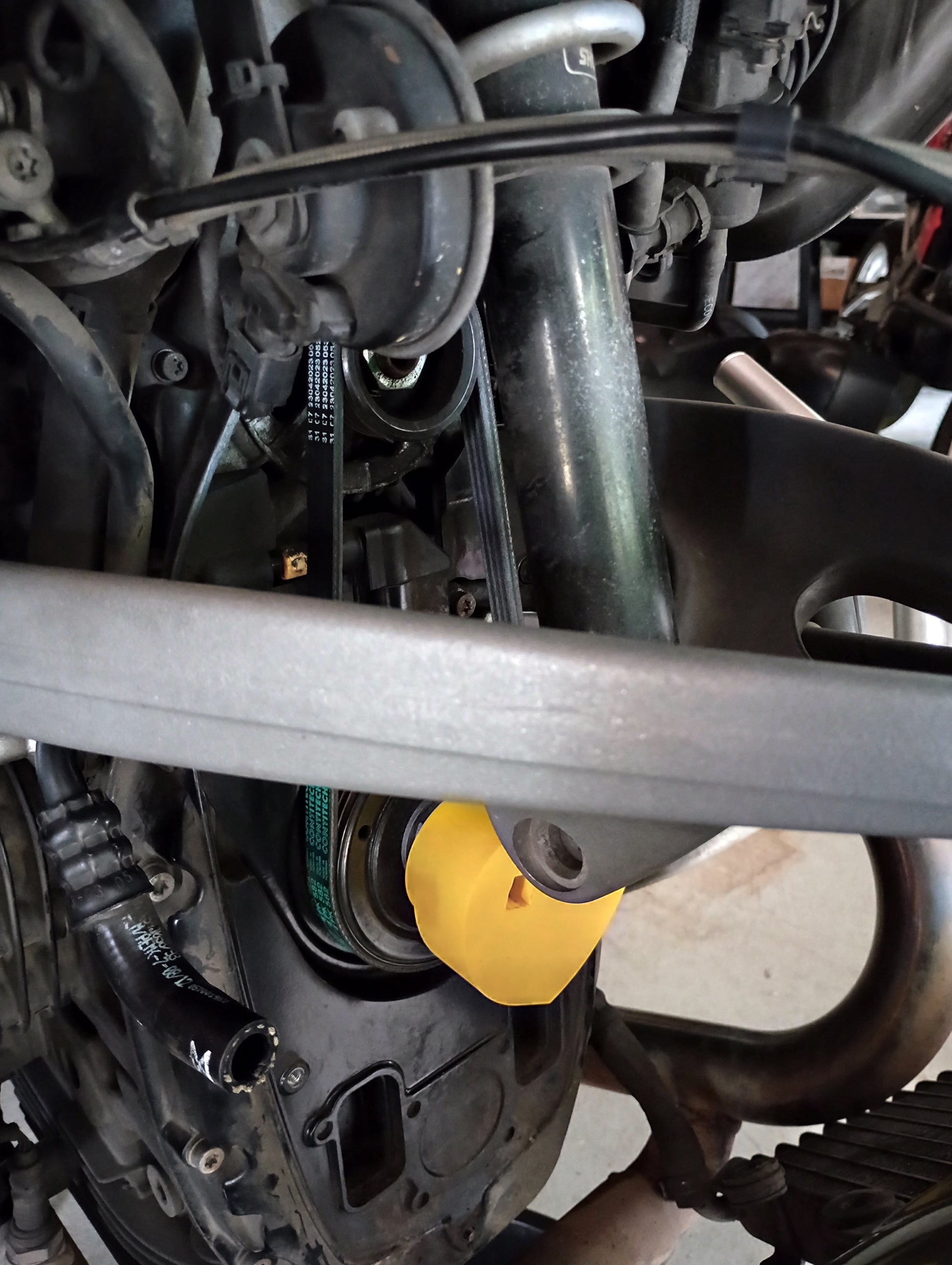

• Maintain axial alignment of the tool with the pulley as you rotate the engine (don't let the tool get crooked relative to the pulley / belt!)
• Removal of spark plugs reduces torque required and makes it easier to keep tool aligned.
• Do Not use with impact drivers or hammers
• Don't drop tool on the floor.
